Brand:Howo Brand New
Load Capacity:40 Tons
Color:Optional
Fuel Tank:300L
| Parameter | Specification |
|---|---|

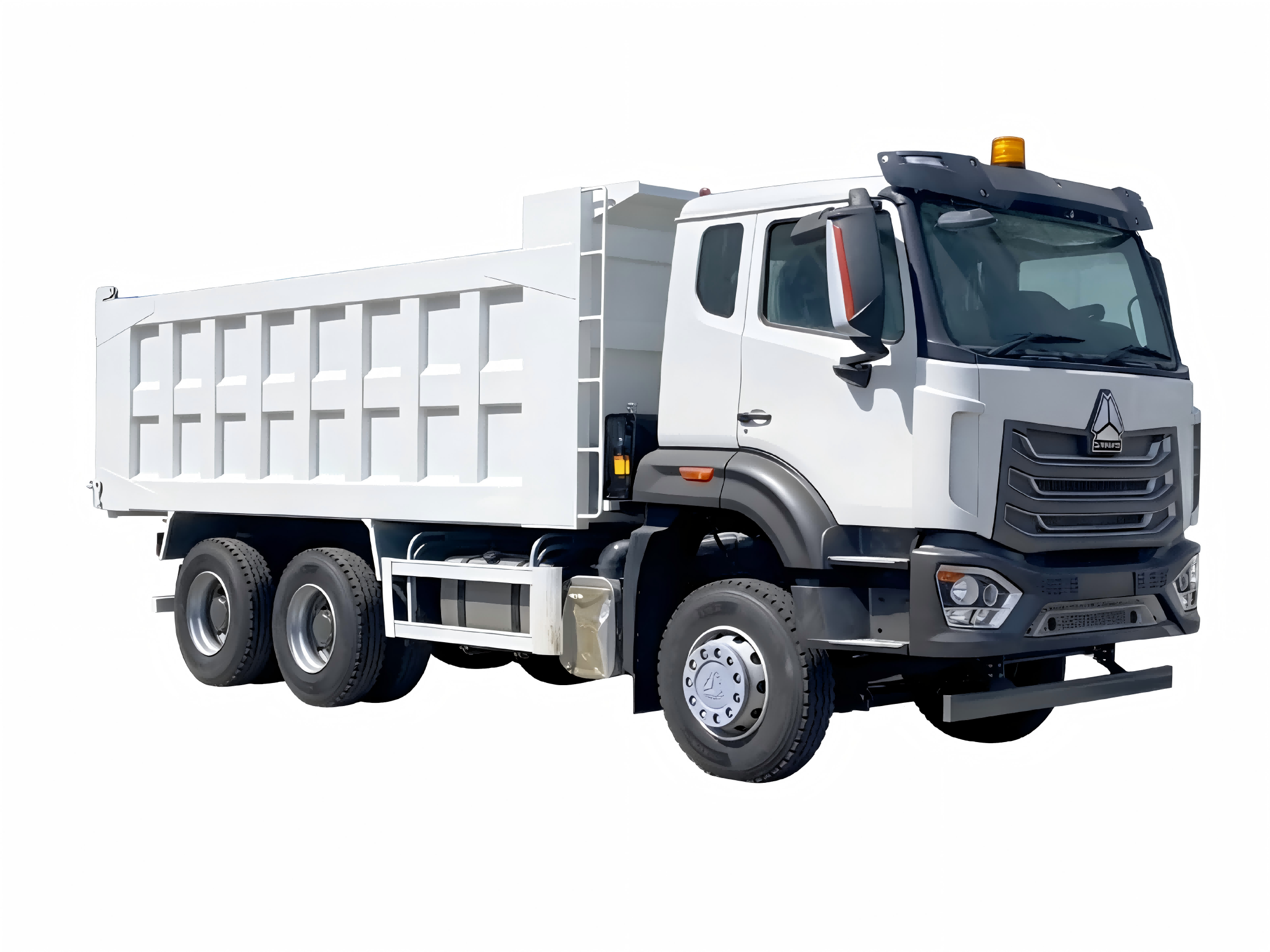

| Model | Sinotruk HOWO TX 6x4 Dump Truck |
| Engine | WD615.47/D12.42, 371/400HP |
| Transmission | HW19710, 10 Forward & 2 Reverse Gears |
| Drive Type | 6x4 |
| Steering | ZF hydraulic steering with power assistance |
| Cabin | TX / HW76 cab, single sleeper, with air conditioner & safety belt |
| Wheelbase | 3500mm + 1350mm |
| Axle Capacity | Front: HF9 (9000kg); Rear: MCP16 ×2 (16000kg ×2) |
| Cargo Body Size | 5600 × 2300 × 1500 mm |
| Body Thickness | Bottom 8mm, Side 6mm |
| Tipping System | HYVA hydraulic front lift |
| Fuel Tank | 300L |
| Tyres | 12.00R20 / 12.00R22.5 / 315/80R22.5 |
| GVW | 25,000 – 70,000 kg |
| Max Speed | 75–90 km/h |
| Brake System | Full air brake with ABS |
| Color | Optional |
