Drive Type:8X4/6X4
Wheelbase:3625mm
Oil Tank400L
Cab:New Model

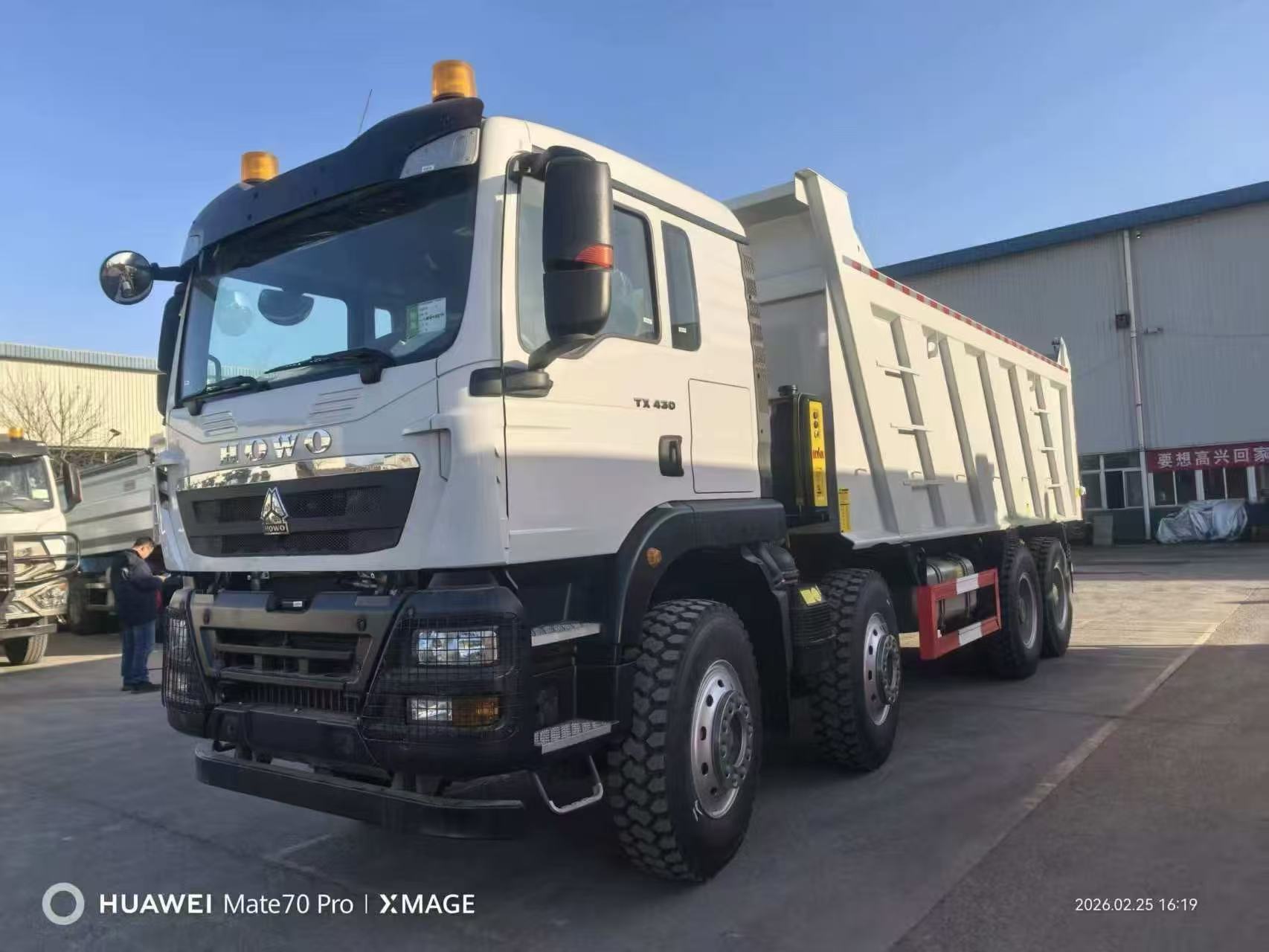

| Truck | Sinotruk HOWO TX 430 8×4 Dump Truck |
| Model | ZZ3317V326GF1 / ZZ3317V386GB1 |
| Vehicle Category | Medium and heavy trucks |
| Vehicle Use | Dump Truck / Tipper |
| Drive Type | 8×4 (also 6×4 optional) |
| Total Mass | 25 t |
| Weight | 9700 kg |
| Wheelbase | 3625 mm (front + mid + rear: 1950+3225+1350 mm optional) |
| Vehicle Length | 8500 mm / 11000 mm (~9780–10250 mm official) |
| Vehicle Width | 2500 mm / 2550 mm |
| Vehicle Height | 3200 mm (~3450 mm official) |
| Truck Model | ZZ3257N364GB1 |
| Engine | Weichai WP12.430E201, Diesel, 430 HP, Euro II |
| Torque | ~2100 N·m @ 1000–1400 rpm |
| Transmission | HW19710L / 10F + 2R |
| Cab | TX-M / TX-F |
| Frame | Double layer frame (8+8/300) |
| Drive Axle Ratio | 3.7, 3.93, 4.11, 4.42, 4.77, 5.26, 5.451, 5.73 |
| Front Axle | VGD95, 9.5 T |
| Rear Axles | MCP16ZG, 16 T ×2 |
| Bumper | High bumper (full metal) |
| Tires | 12R22.5, 12+1 pcs |
| Steering | BOSCH hydraulic power steering, LHD/RHD optional |
| Brake System | Dual-circuit compressed air brake, ABS optional |
| Fuel Tank Capacity | 400 L |
| Dump Body Size | 7300×2300×1500 mm, bottom 8 mm / side 6 mm |
| Cargo Body Volume | 25 m³ |

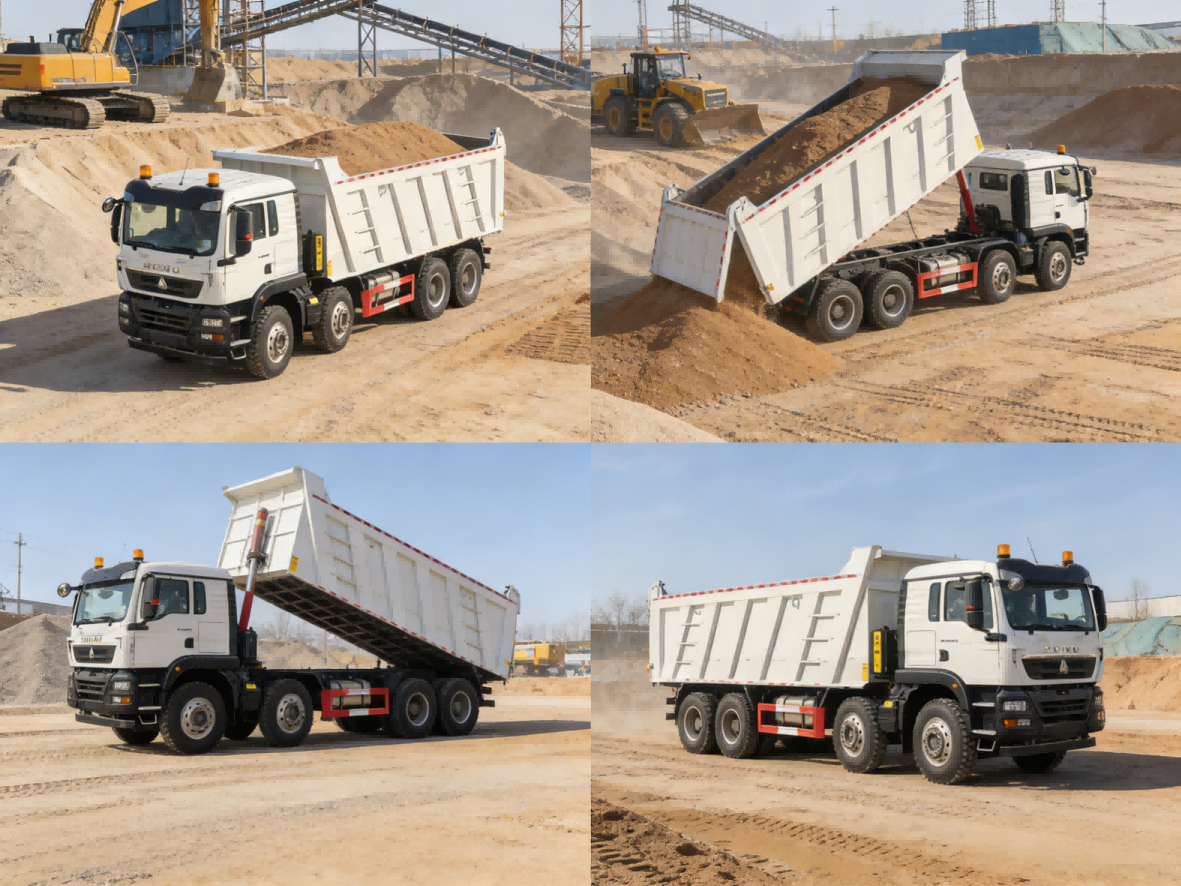

| Application | Mining, construction, infrastructure heavy transport |
